AuraPlex X20 Pro Auracast Group (10 AuraClip & 4 Aria Aura & 3 AuraBand & 3 AuraCoil) Listening Kit w/ Charging Dock
20-listener hybrid Auracast system • Multiple accessible listening pathways

AuraPlex X20 Pro

AuraPlex X20 Pro combines AirCast with receivers, headphones, earbuds and T-Coil neckloops for flexible assistive listening across churches, classrooms, conferences and public venues.

20 included listener devicesUp to 150m / 500ft line-of-sight coverageTypically 300–1,000 seats suggested venue size
$2,299.99
Version:
AuraPlex X14 Pro AuraPlex X14 Pro AuraPlex X20 Pro AuraPlex X20 Pro

Checking the fastest delivery option…

Firmware Update Alerts

Get notified when new AuraPlex X20 Pro firmware is available.

Firmware updates only. No marketing emails.
Check compatibility Guided enquiry
Fast ShippingReliable Delivery
60-Day Free ReturnsHassle-Free
Bulk DiscountVolume Pricing Available
Free Setup SupportVenue Specialist Included
  • Hybrid 20-Listener System – Includes 1 AirCast transmitter, 10 AuraClip receivers, 4 Aria Aura headphones, 3 AuraBand earbuds, 3 AuraCoil neckloops and 3 charging docks.
  • Multiple Accessibility Pathways – Supports venue receivers, Auracast hearing aids and headphones, wireless earbuds and compatible T-Coil devices.
  • Up to 150m / 500ft Coverage – Long-range line-of-sight broadcasting for mid-size and large indoor venues.

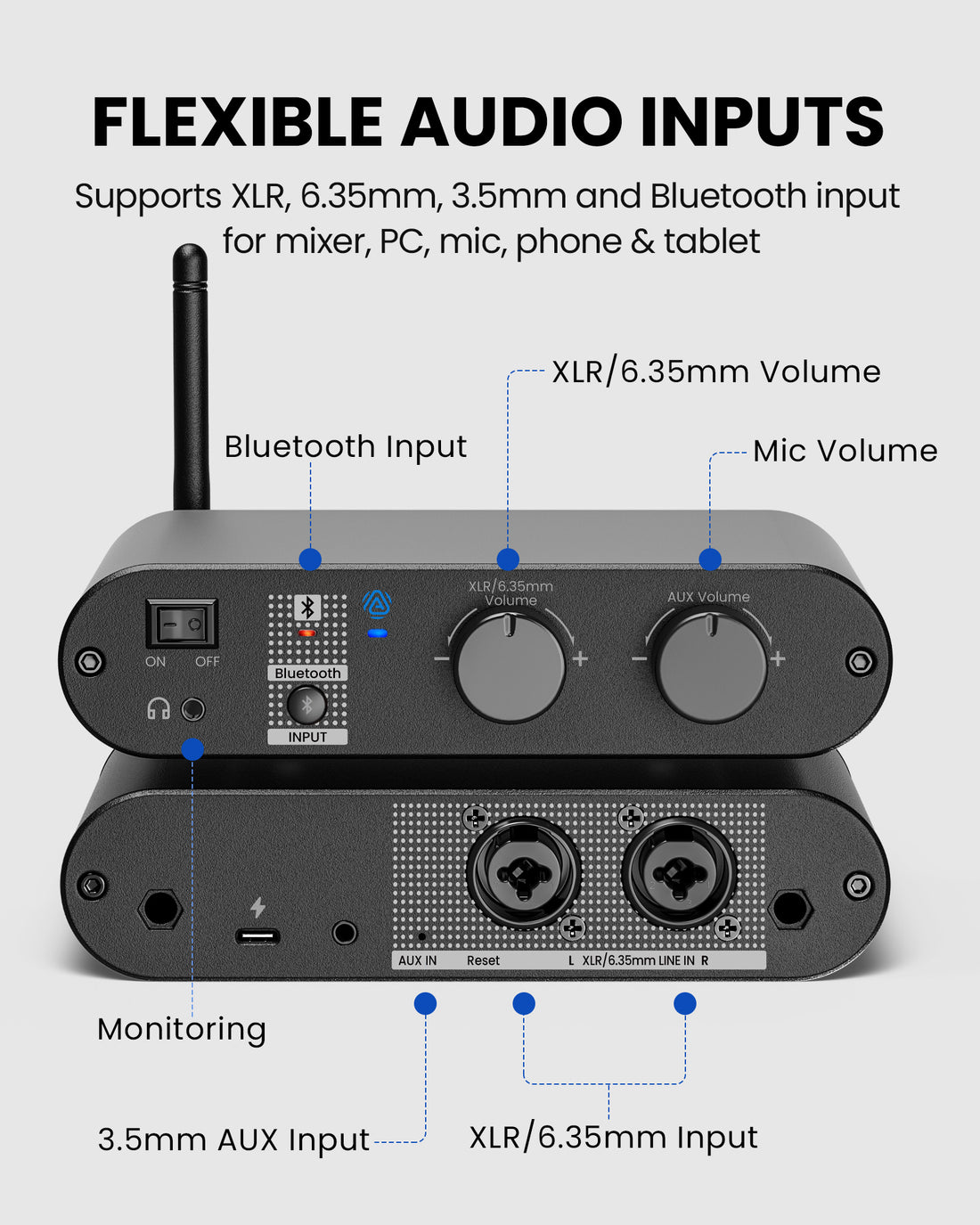

  • Professional Audio Inputs – Connect XLR, 6.35mm, 3.5mm AUX and Bluetooth sources.
  • T-Coil Ready – Included AuraCoil neckloops support compatible hearing aids and cochlear implant processors.
  • Managed Venue Setup – Configure broadcast name, password and settings, with QR access for supported devices.
Firmware Update
AuraPlex X20 Pro $2,299.99

You Don’t Need New Auracast Hearing Aids

VenuCast works with the hearing devices people already use.

  1. Venue Audio
  2. Auracast
  3. Choose how you listen
Modern Auracast hearing aid

Auracast hearing aids

Connect directly to the Auracast broadcast.

Direct Auracast

Traditional hearing aids with an AuraCoil receiver

T-Coil hearing aids

Use AuraCoil to hear through the hearing aid’s T-Coil.

AuraCoil

Traditional Bluetooth hearing aids Aura C receiver connected to a phone

Bluetooth hearing aids

Use Aura C as a bridge for compatible Bluetooth hearing aids.

Aura C

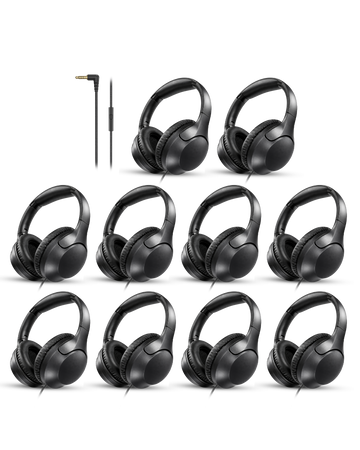

AuraClip Auracast receiver VenuCast wired on-ear headphones

No hearing aids

Use a receiver with headphones or earbuds.

Receiver + Headphones

Bottom line: One Auracast broadcast can serve many different listeners.

See the Hearing Access Guide

01 · Build your system

Complete the system

View all Add-ons & Accessories

02 · How it works

How it works with your devices

Audio sources

  • Mixer / PA
  • Microphone system
  • AUX / media
  • Bluetooth
  • Computer
  • Line output
Find the right cable

Product

AuraPlex X20 Pro
AuraPlex X20 Pro

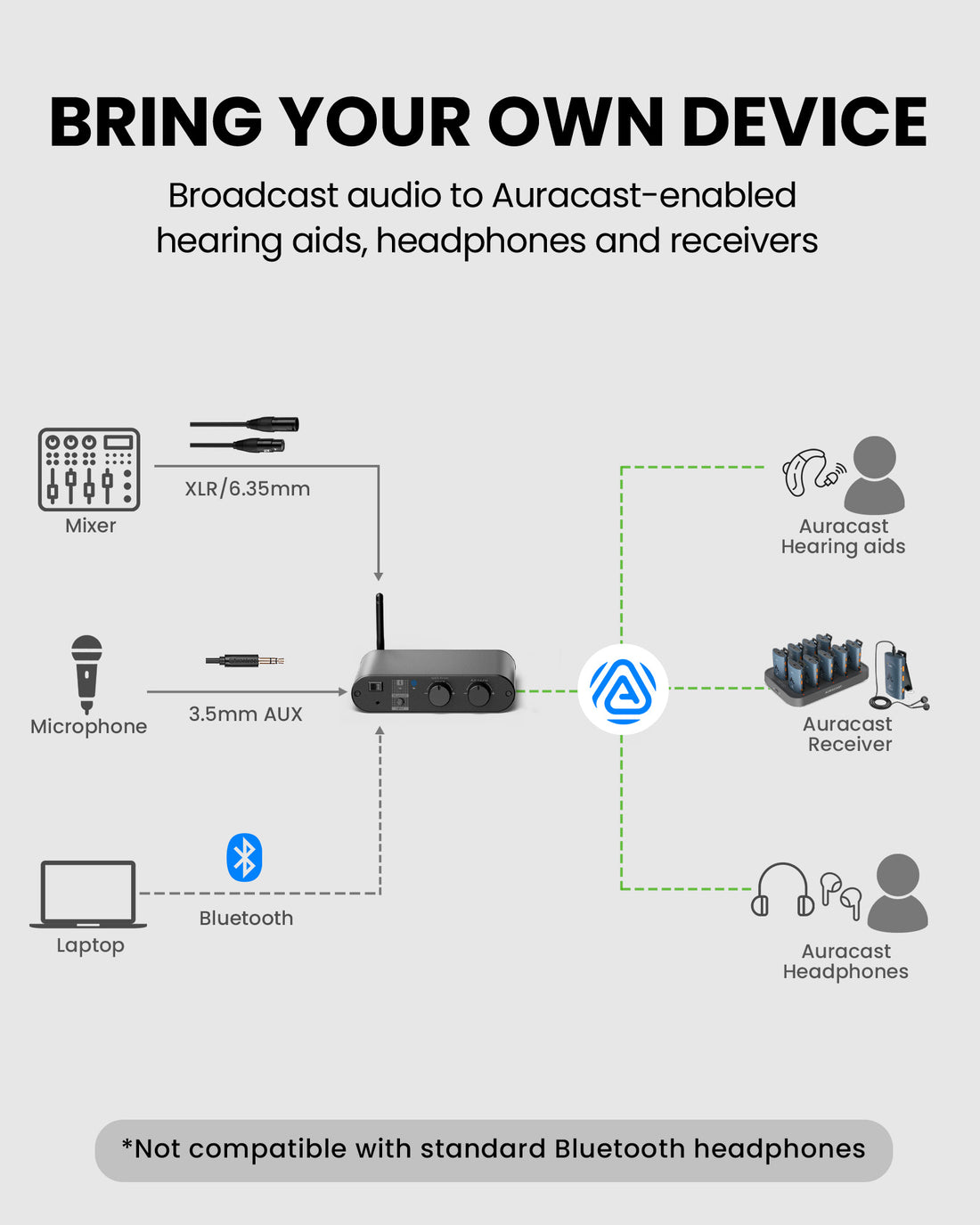

Listener pathways

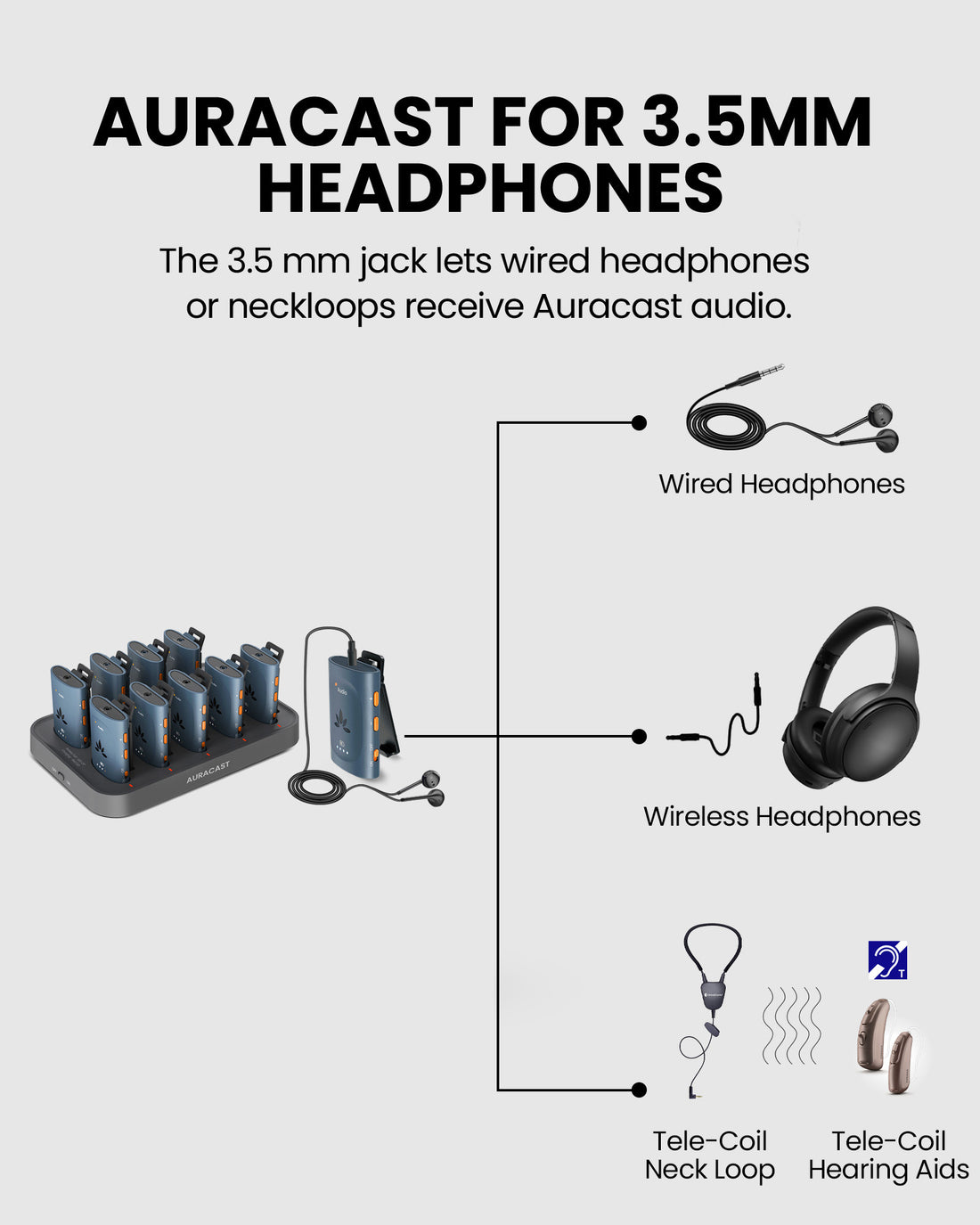

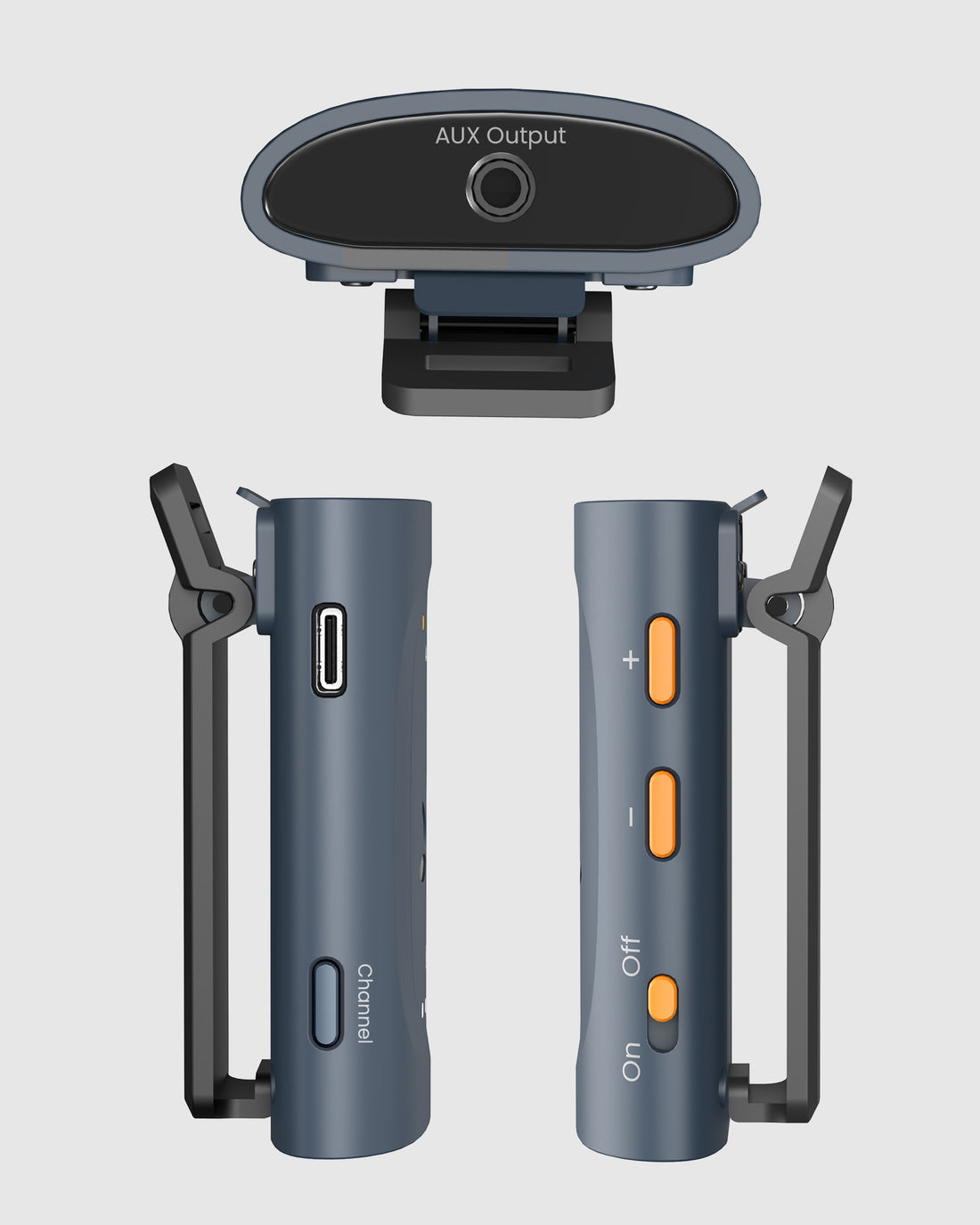

  • Included AuraClip receiversConnect wired 3.5mm headphones to the included venue receivers for managed listening.

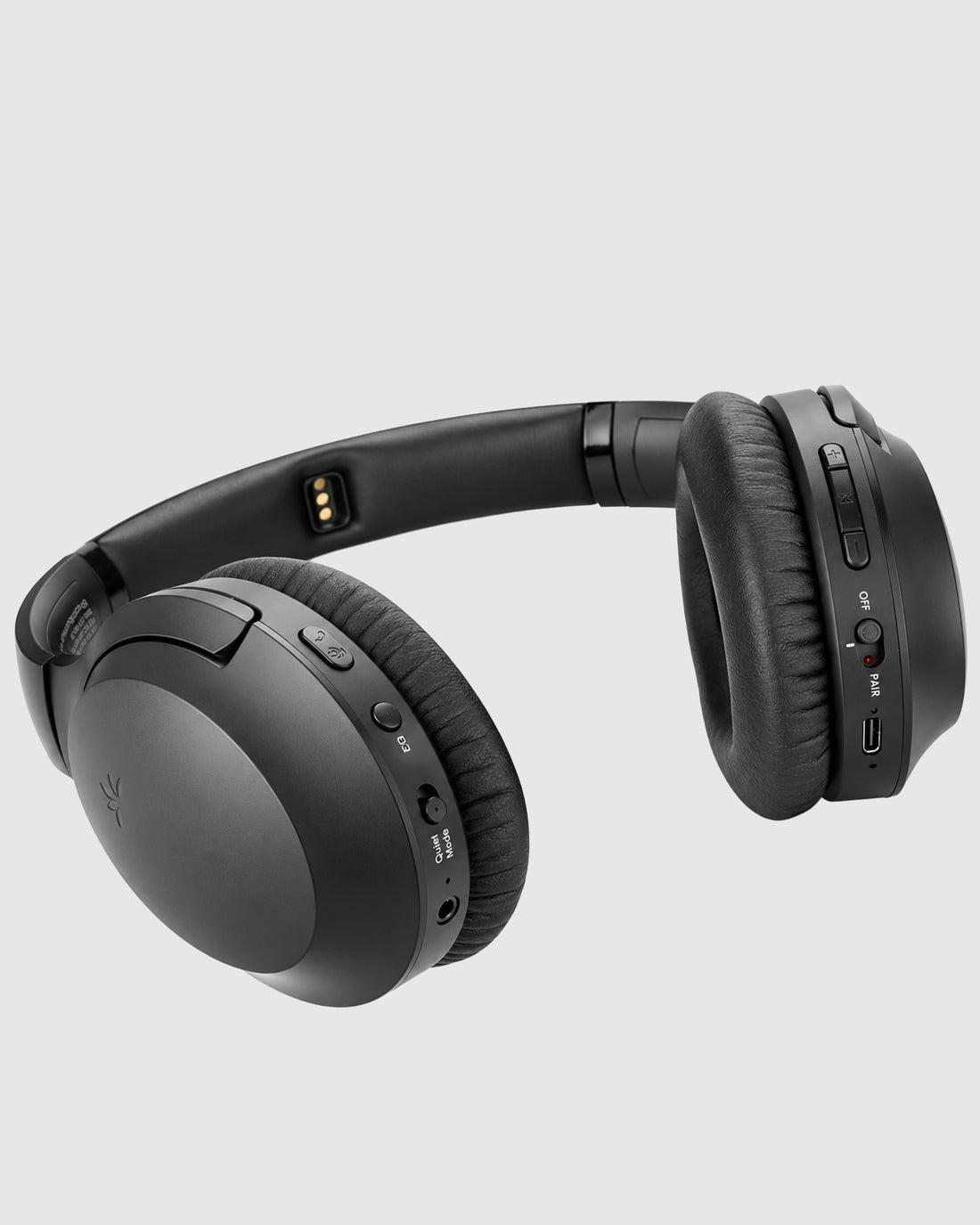

  • Included Auracast headphonesAria Aura headphones join the broadcast wirelessly without a separate receiver.
  • Compatible personal devicesCompatible Auracast hearing aids, earbuds and headphones can join through their supported app or assistant.

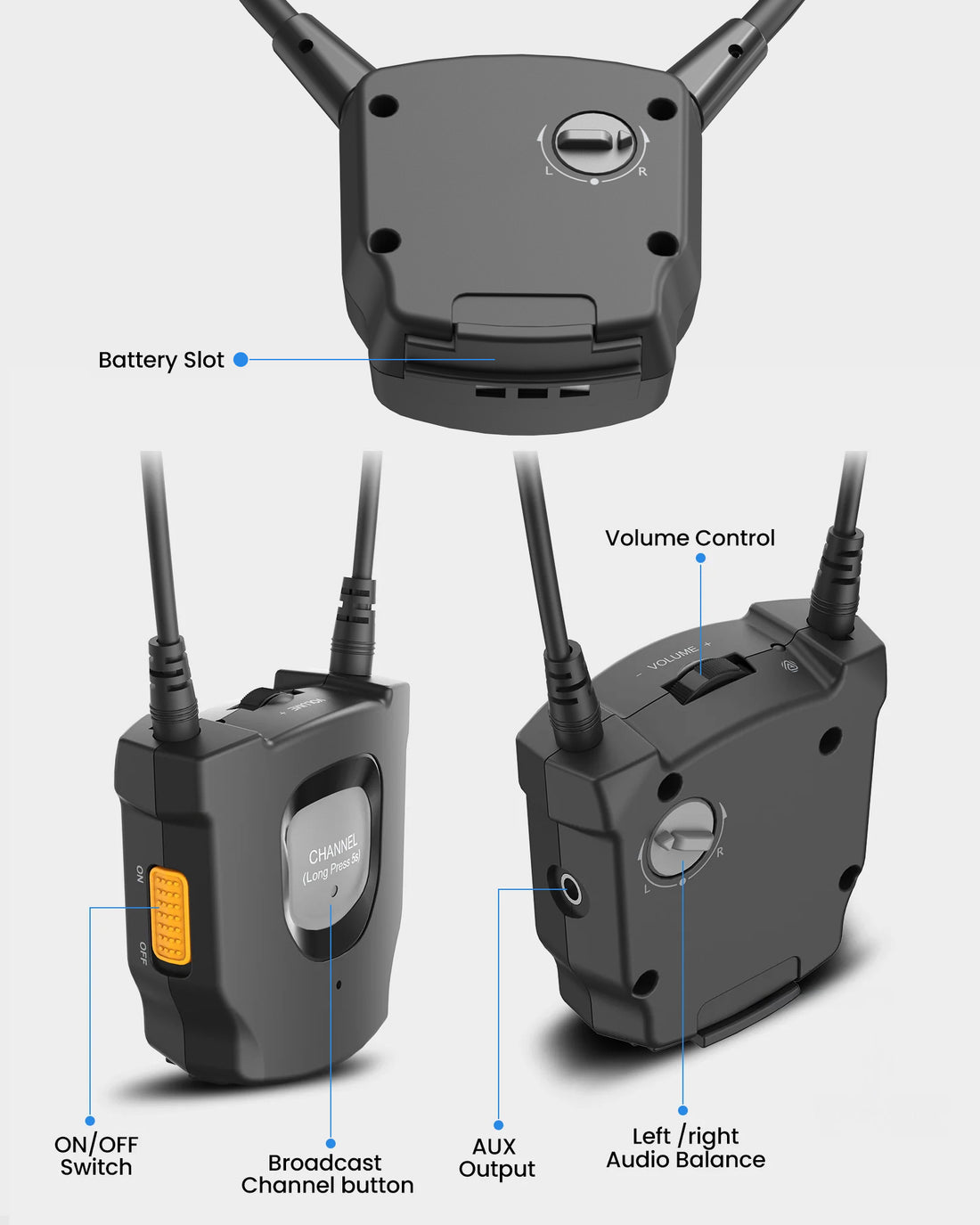

  • Included T-Coil pathwayAuraCoil neckloops send the broadcast to compatible T-Coil hearing aids and cochlear implant processors.

Listeners can use included venue devices, compatible personal Auracast products or the included AuraCoil T-Coil pathway. Device support depends on the listener product and its software.

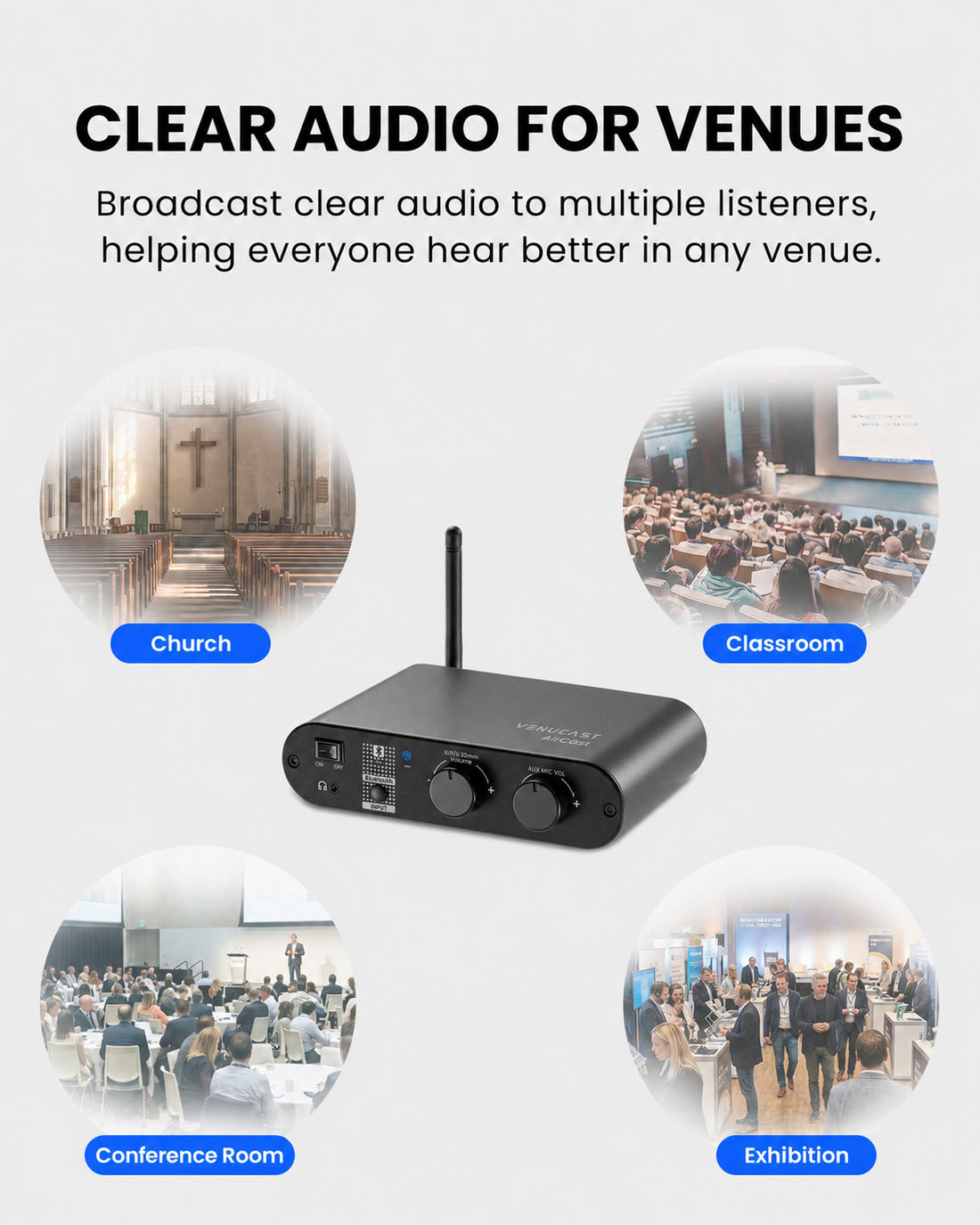

03 · Where it fits

Where it fits

Church & Worship

Church & Worship

Broadcast sermons, music and announcements from the venue mixer to multiple listening pathways.

Classroom & Training

Classroom & Training

Provide clear shared speech and program audio for students, trainees and attendees.

Conference & Theater

Conference & Theater

Support accessible listening for presentations, performances and public programs.

Community & Public Venue

Community & Public Venue

Deploy managed receivers and compatible personal devices across indoor public spaces.

Best suited to indoor medium and large venues with a suitable local audio feed and clear line of sight. It is not intended for stadium-scale, outdoor or ultra-low-latency applications.

04 · Product details

Product details

Key specifications

System configuration
1 transmitter, 10 receivers, 7 wireless listening devices, 3 T-Coil neckloops
Bluetooth version
v5.4
Bluetooth profiles
Auracast Broadcast (PBP, TMAP)
Supported audio codec
Auracast LC3
Audio latency
Approx. 50–70ms
Audio inputs
XLR, 6.35mm, 3.5mm AUX, Bluetooth
Transmitter operating range
Up to 500ft / 150m to receivers; up to 100ft / 30m from phone or PC
Firmware upgradable
Yes (DFU support)
Transmitter dimensions
6.7 × 4.3 × 1.5in / 170 × 110 × 37mm
Transmitter weight
1.7lb / 800g

Simple setup

  1. 1Connect the venue audio sourceConnect a mixer, microphone system, computer or media source through XLR, 6.35mm, 3.5mm AUX or Bluetooth.
  2. 2Configure the Auracast broadcastSet the broadcast name, password and audio levels, then confirm the program feed.
  3. 3Distribute and test listener devicesTest the included receivers, headphones, earbuds and T-Coil pathway, then verify compatible personal Auracast devices.

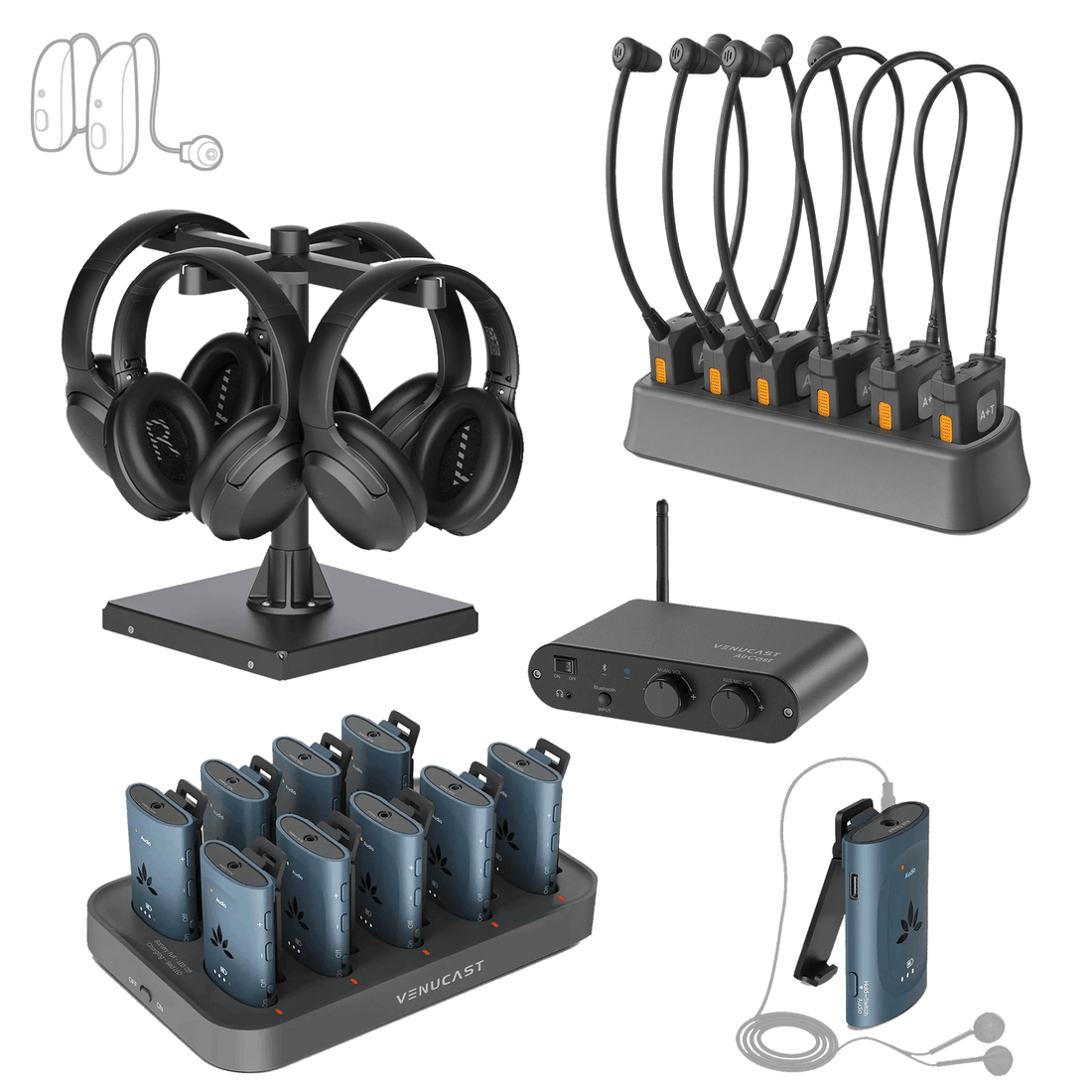

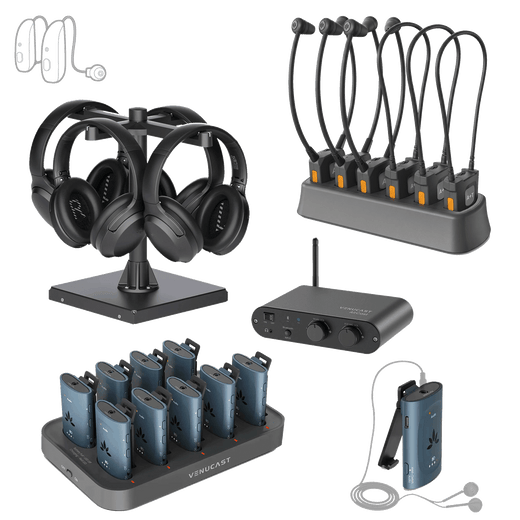

In the box
  • 1 × AirCast Transmitter
  • 10 × AuraClip Receivers
  • 4 × Aria Aura Headphones

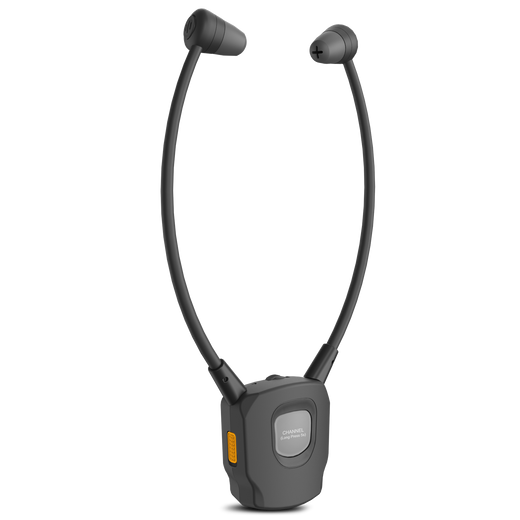

  • 3 × AuraBand Earbuds

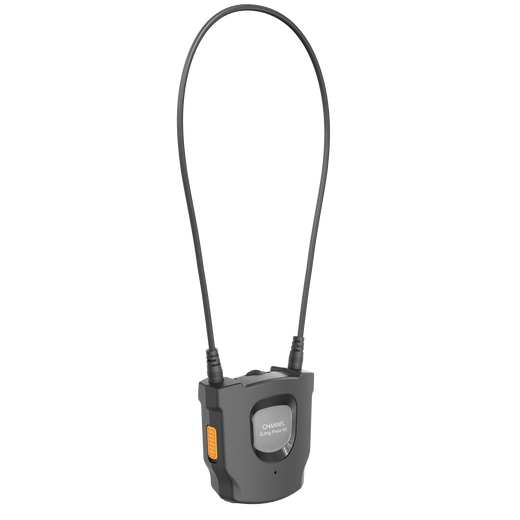

  • 3 × AuraCoil Neckloops
  • 1 × 10-Slot Charging Dock

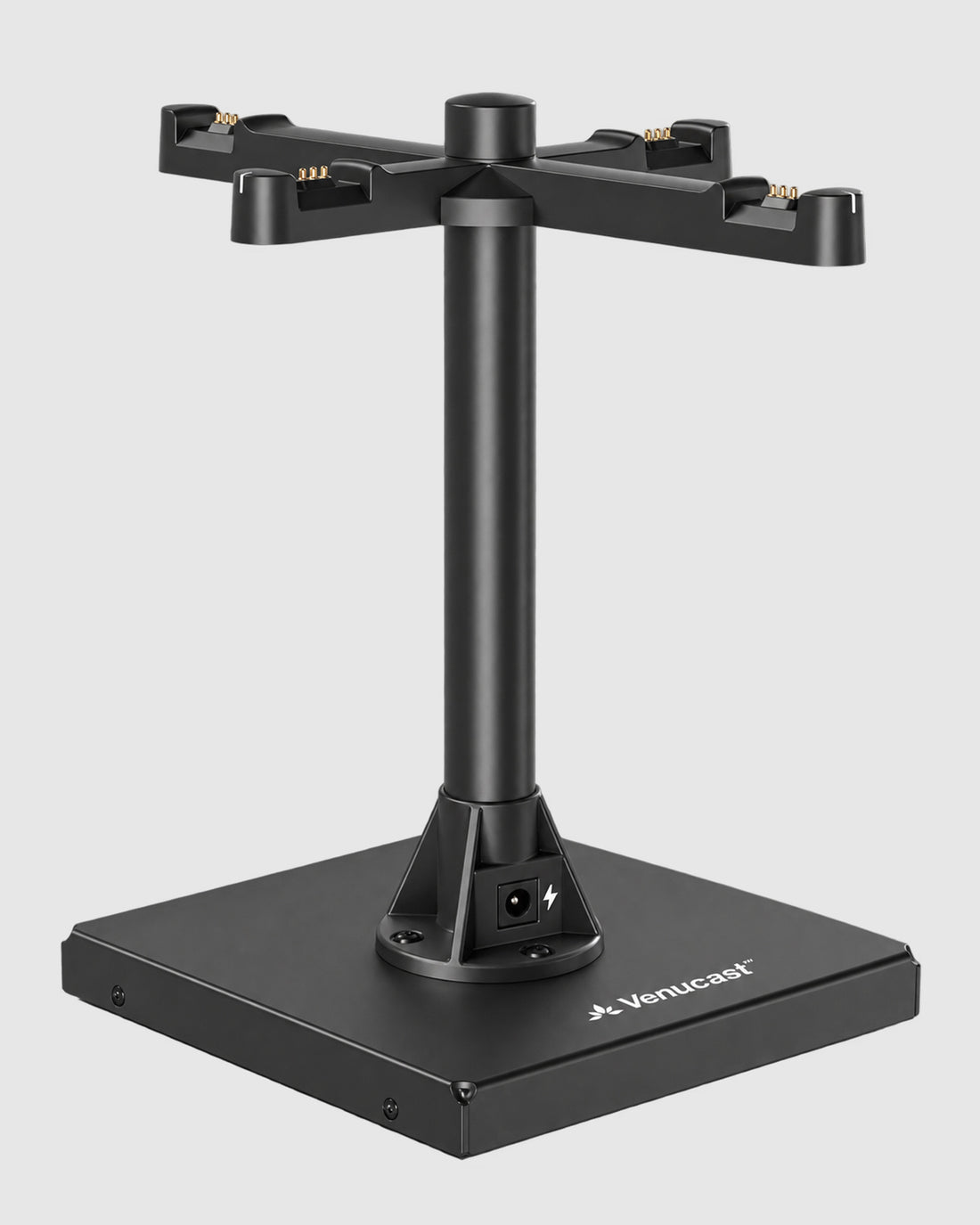

  • 1 × 4-Slot Charging Stand

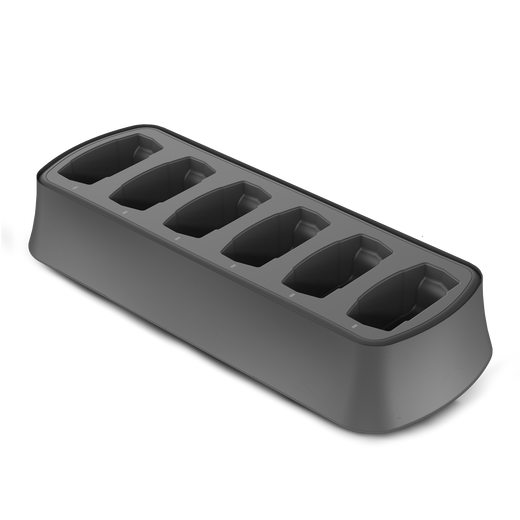

  • 1 × 6-Slot Charging Dock
  • 1 × USB-C Power Adapter
  • 1 × DC Power Adapter
  • 1 × 3.5mm AUX Audio Cable
  • 2 × XLR Female to XLR Male Cables
  • 3 × USB-C Cable

05 · Common questions

Common questions

What is AuraPlex X20 Pro designed for?

AuraPlex X20 Pro is a hybrid Auracast assistive listening system for indoor public venues that need receivers, wireless headphones, earbuds and a T-Coil listening pathway in one deployment.

What listener devices are included?

The system includes 10 AuraClip receivers, four Aria Aura headphones, three AuraBand earbuds and three AuraCoil T-Coil neckloops, supporting 20 venue-provided listeners.

Which audio sources can connect?

AirCast accepts XLR, 6.35mm, 3.5mm AUX and Bluetooth sources, including mixers, microphone systems, computers, phones and media players.

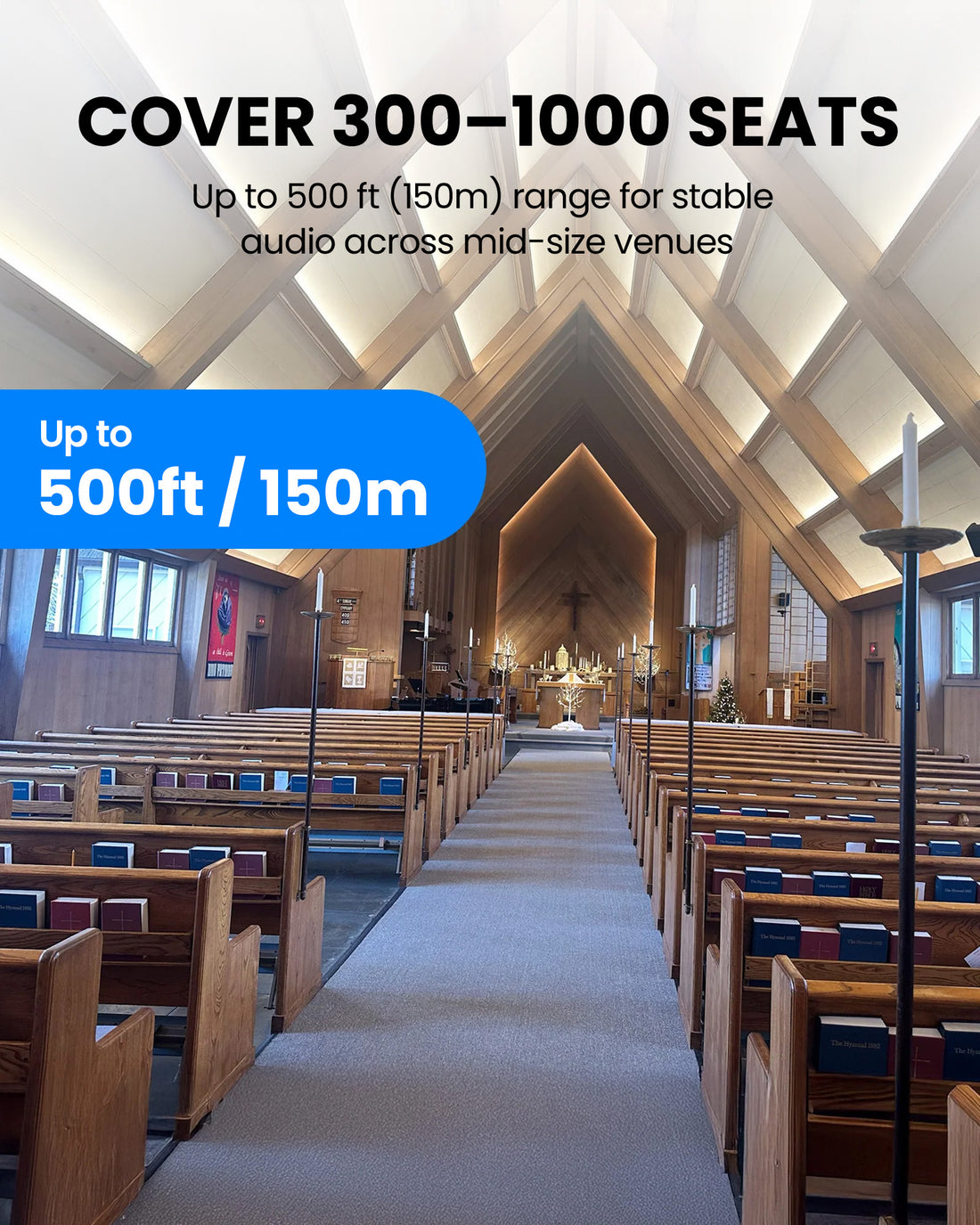

What is the expected coverage?

The published system range is up to 150m / 500ft line of sight. Walls, people, interference and venue layout can reduce usable range.

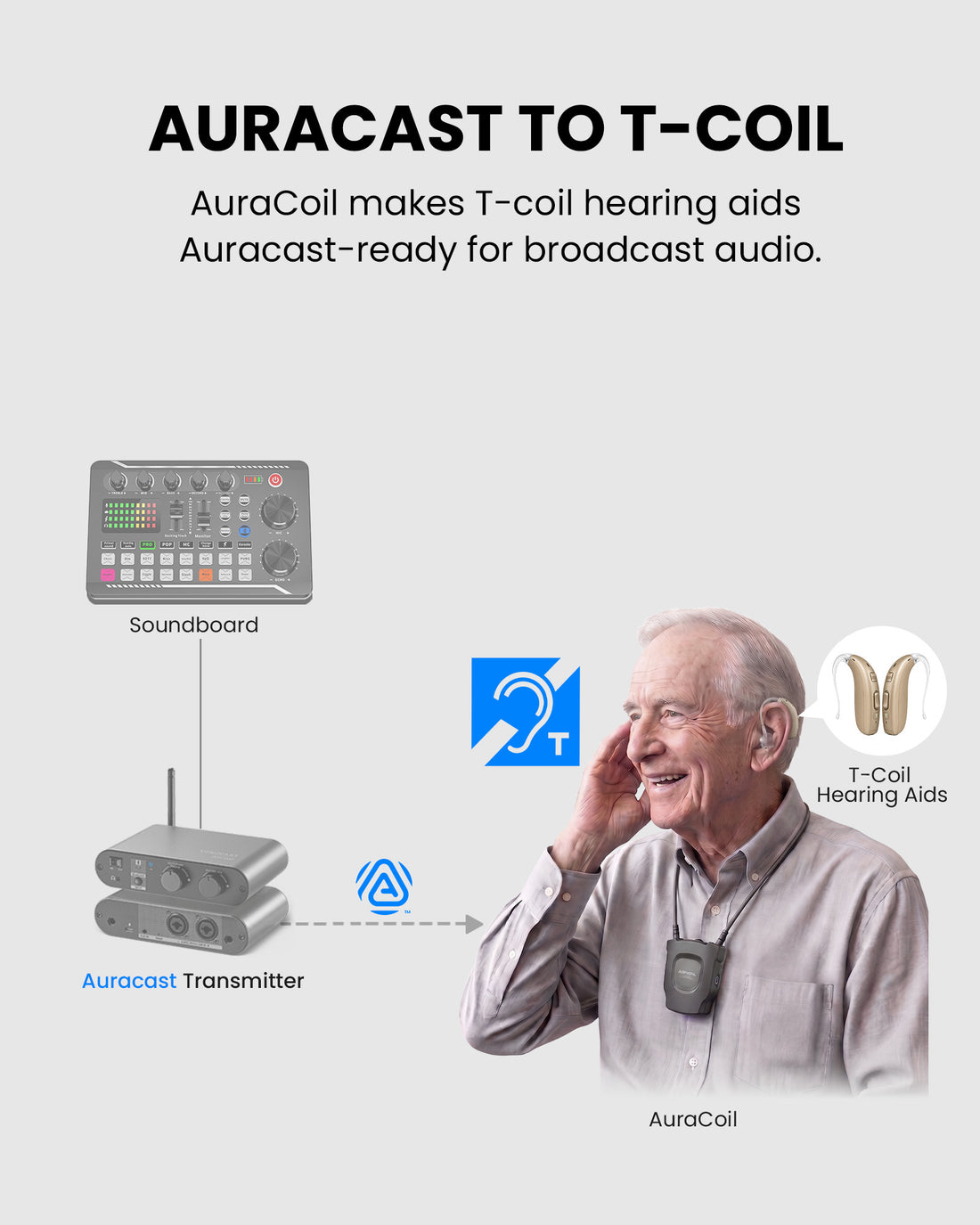

How do T-Coil hearing aids connect?

The included AuraCoil neckloops receive the Auracast broadcast and pass the audio to compatible hearing aids or cochlear implant processors through their T-Coil setting.

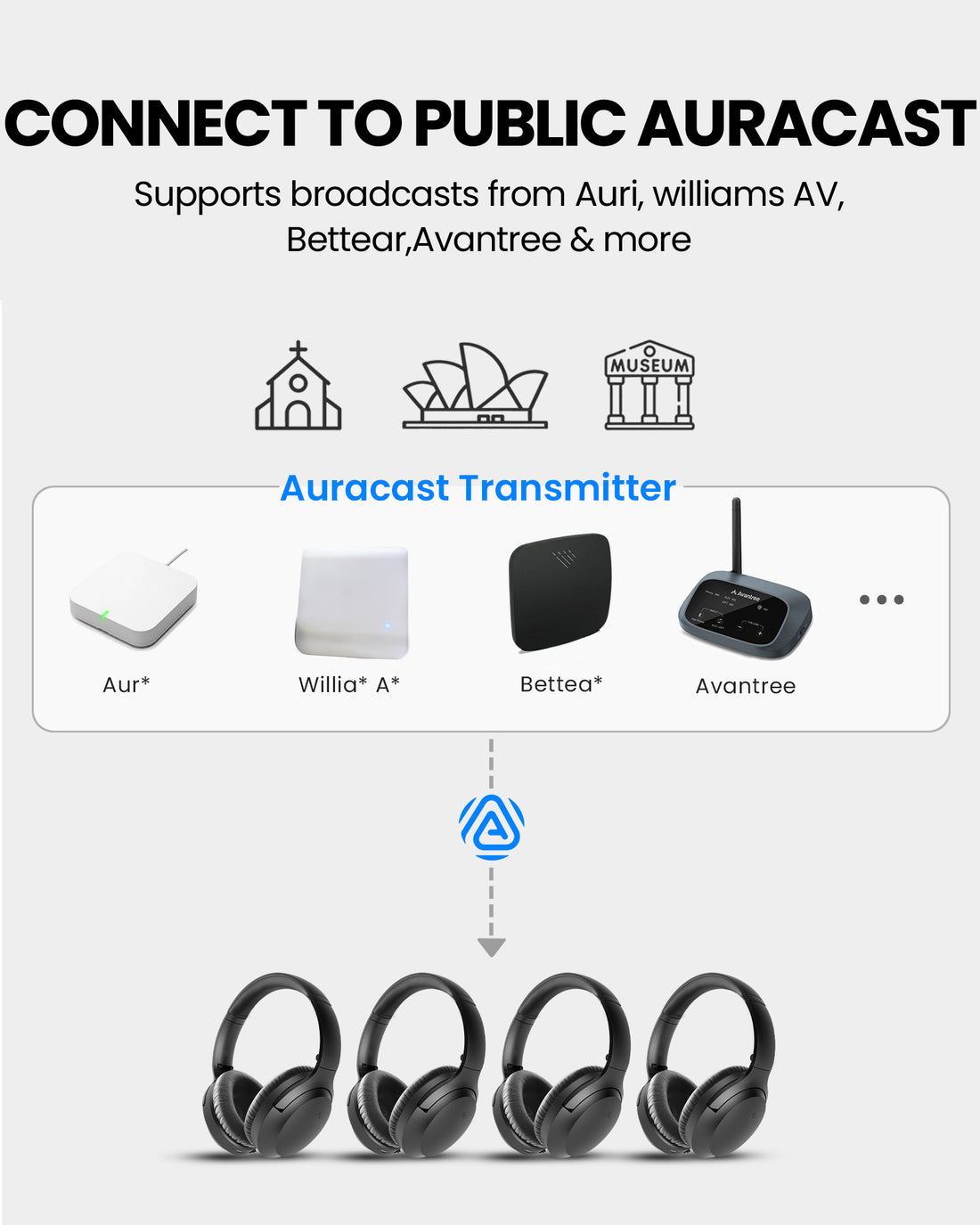

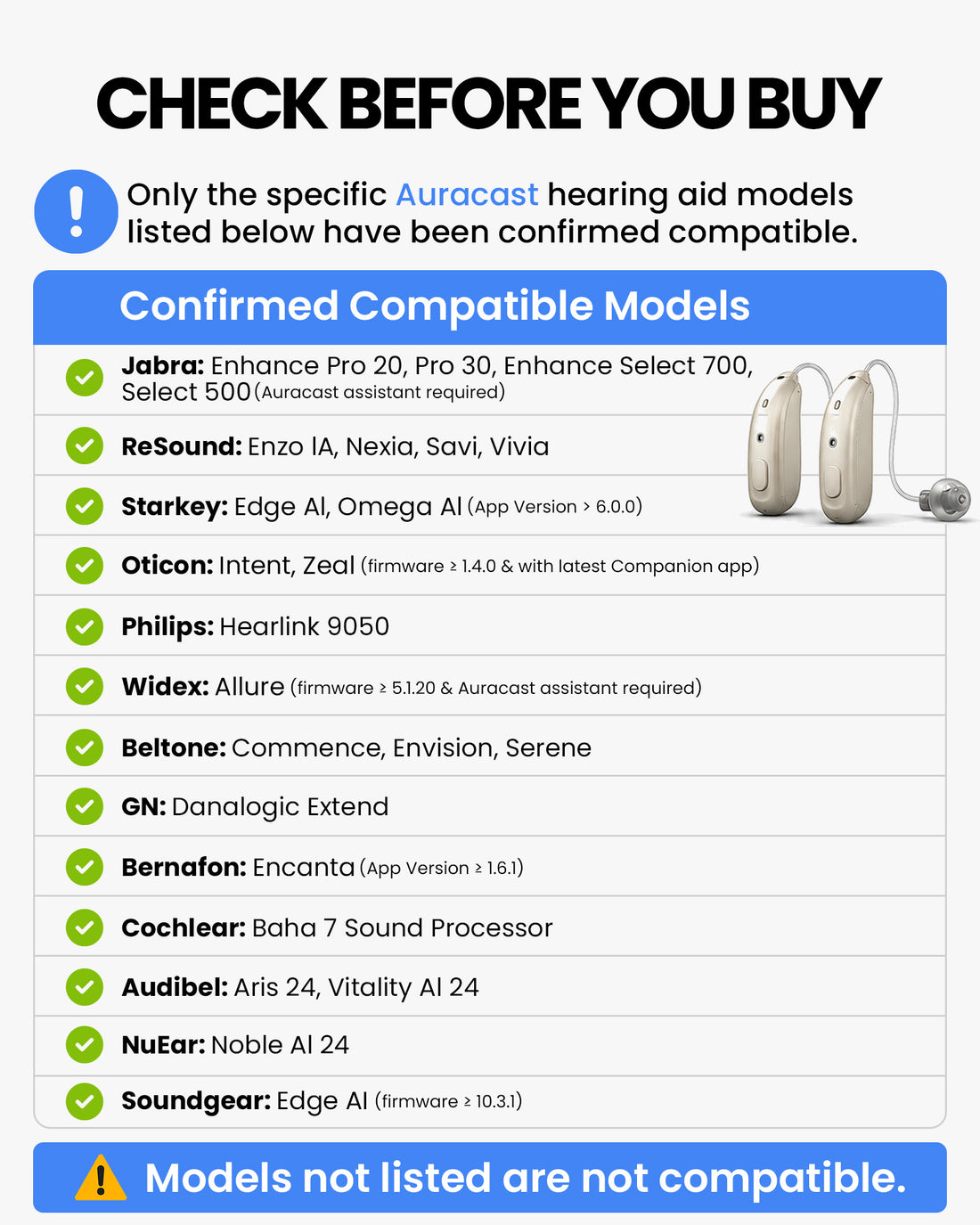

Can guests use their own Auracast devices?

Yes. Compatible Auracast hearing aids, earbuds and headphones can join the broadcast through their supported app or assistant.

Is it intended for ultra-low-latency monitoring?

No. Typical Auracast latency is approximately 50–70ms, which is designed for assistive and group listening rather than musicians’ in-ear monitoring.
