Audiplex MX Wireless 2.4G Venue transmitter and receivers. 10 Receivers with Dock Supports up to 4 selectable channels, for churches, schools, training sessions, or multilingual events.
Low-latency 2.4GHz listening system - 10 receivers with charging base

Audiplex MX

Audiplex MX delivers selectable-channel, low-latency group listening through ten managed receivers and expands to larger groups.

1 transmitter + 10 receivers + charging base included systemUp to 100m / 328ft line-of-sight coverageUnder 30ms in low-latency mode audio latency
$599.99
Version:
<tc>Audiplex</tc> M3Audiplex M3 <tc>Audiplex</tc> MXAudiplex MX

Firmware Update Alerts

Get notified when new Audiplex MX firmware is available.

Firmware updates only. No marketing emails.
Check compatibility Guided enquiry
Fast Local Delivery1-3 Business Days
60-Day Free ReturnsHassle-Free
Free Setup SupportVenue Specialist Included

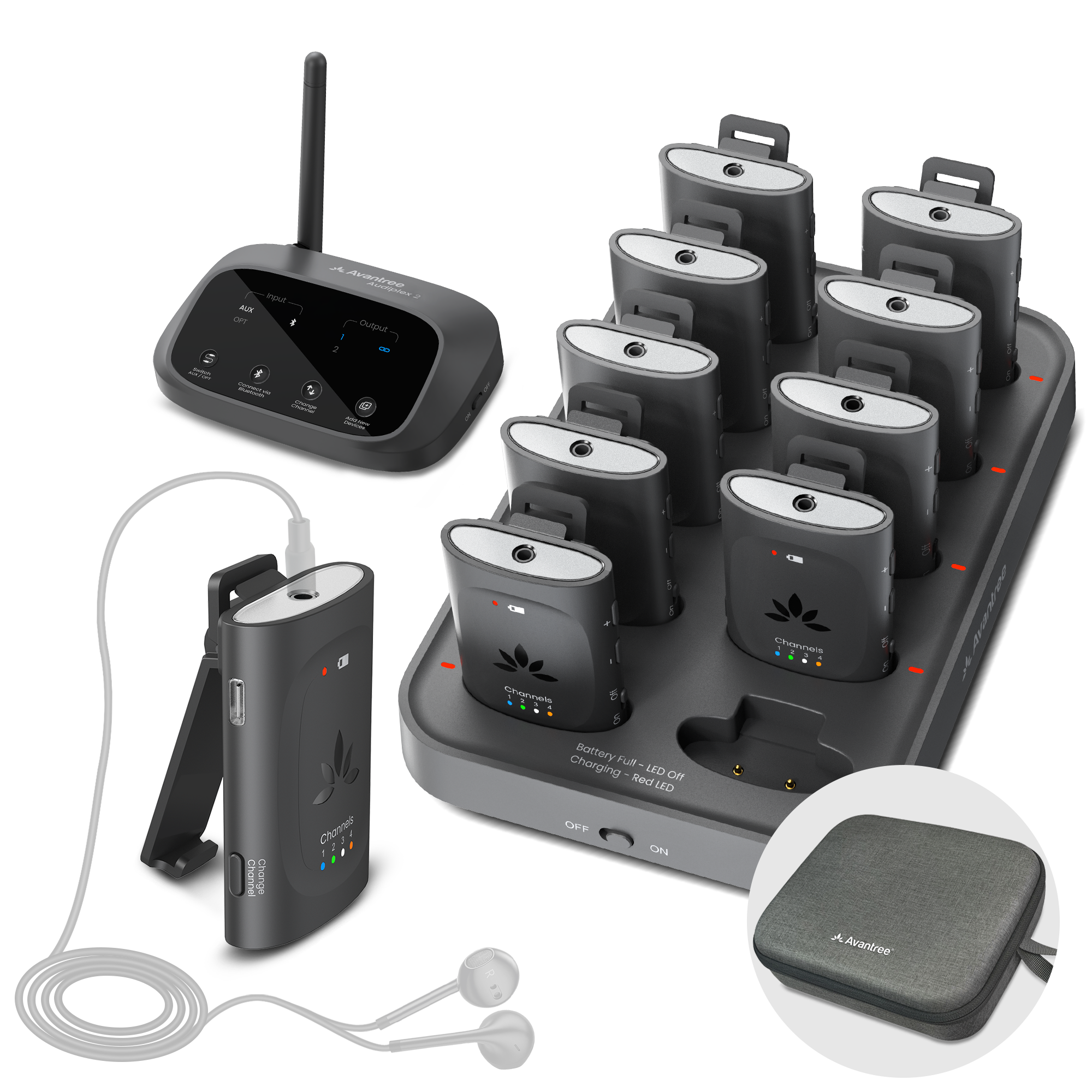

  • Ten-Receiver Managed System – Includes one transmitter, ten receivers, charging base and storage bag.
  • Four Selectable Channels – Support separate programs for multilingual, training or multi-group listening.
  • Under 30ms Low-Latency Audio – Keep speech, video and live presentations closely synchronized.
  • Up to 100m / 328ft Range – Cover medium-sized venues under suitable line-of-sight conditions.
  • Expandable to 100 Receivers – Add compatible receivers as group size increases.
  • Individual Listener Control – Each listener connects compatible wired headphones, earbuds or a neckloop and adjusts personal volume.
Setup & Support
Audiplex MX $599.99

01 · Build your system

Complete the system

Câble RCA Works with Audiplex MX Câble RCACâble en Y stéréo avec une prise RCA femelle et deux prises RCA mâles (40 cm/1 pied)$14.99→
View all Add-ons & Accessories

02 · How it works

How it works with your devices

Audio sources

Bluetooth phone / tabletOptical TV / digital output3.5mm AUX / mixerComputer / media player

Product

<tc>Audiplex</tc> MX
Audiplex MX

Listener pathways

  • Wired headphones and earbudsConnect a compatible 3.5mm listening device to each included receiver.
  • Compatible neckloopsUse a supported 3.5mm neckloop for listeners with telecoil-equipped hearing aids.
  • Additional Audiplex receiversAdd compatible Audiplex receivers as group size or channel requirements increase.

Audiplex MX uses dedicated 2.4GHz receivers. It does not broadcast directly to Auracast hearing aids or other Auracast listener devices.

03 · Where it fits

Where it fits

Church & Worship

Provide managed low-latency listening for services, interpretation and program audio.

Classroom & Training

Run clear listening groups for lessons, lectures and multilingual training.

Conference & Events

Support multiple selectable channels for meetings and simultaneous programs.

Courtroom & Controlled Venue

Use dedicated receivers where managed hardware and lower delay are preferred.

Best for managed hardware deployments where lower latency and selectable channels matter more than BYOD or direct Auracast hearing-aid access.

04 · Product details

Product details

Key specifications

Wireless link
Dedicated 2.4GHz RF
Selectable channels
Up to 4
Operating range
Up to 100m / 328ft line of sight
Audio latency
Under 30ms in low-latency mode
Maximum receivers
Up to 100
Audio inputs
Bluetooth, optical and 3.5mm AUX
Receiver output
3.5mm AUX, 16-64 ohm
Receiver playtime
Up to 10 hours
Receiver charging time
Approx. 1.5 hours
Signal-to-noise ratio
94dBA

Simple setup

  1. 1Connect the audio sourceConnect the transmitter through Bluetooth, optical or 3.5mm AUX.
  2. 2Select the channelChoose the transmitter channel and set the included receivers to the same channel.
  3. 3Distribute the receiversConnect headphones or earbuds, confirm volume and return receivers to the charging base after use.
In the box

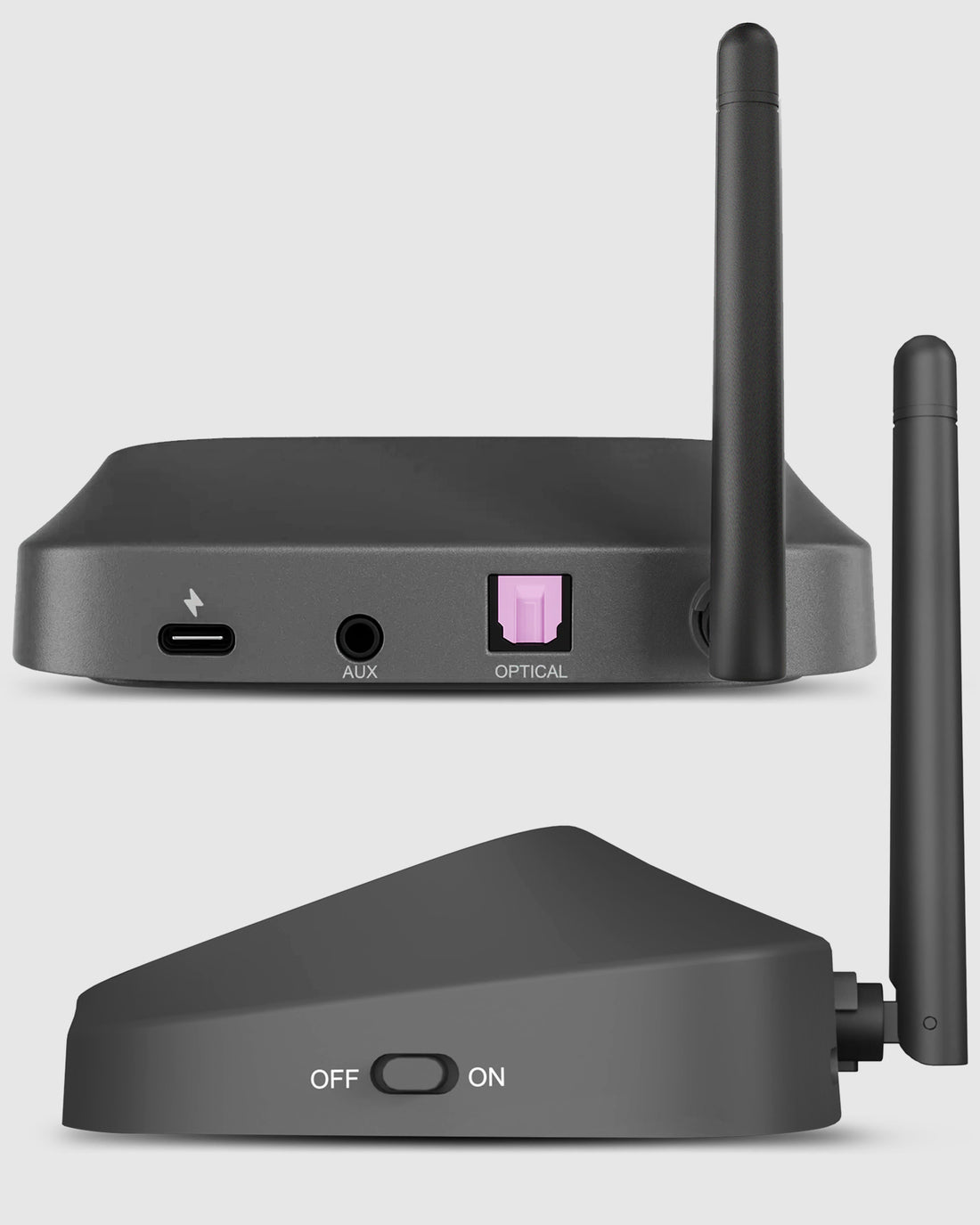

  • 1 x Audiplex transmitter

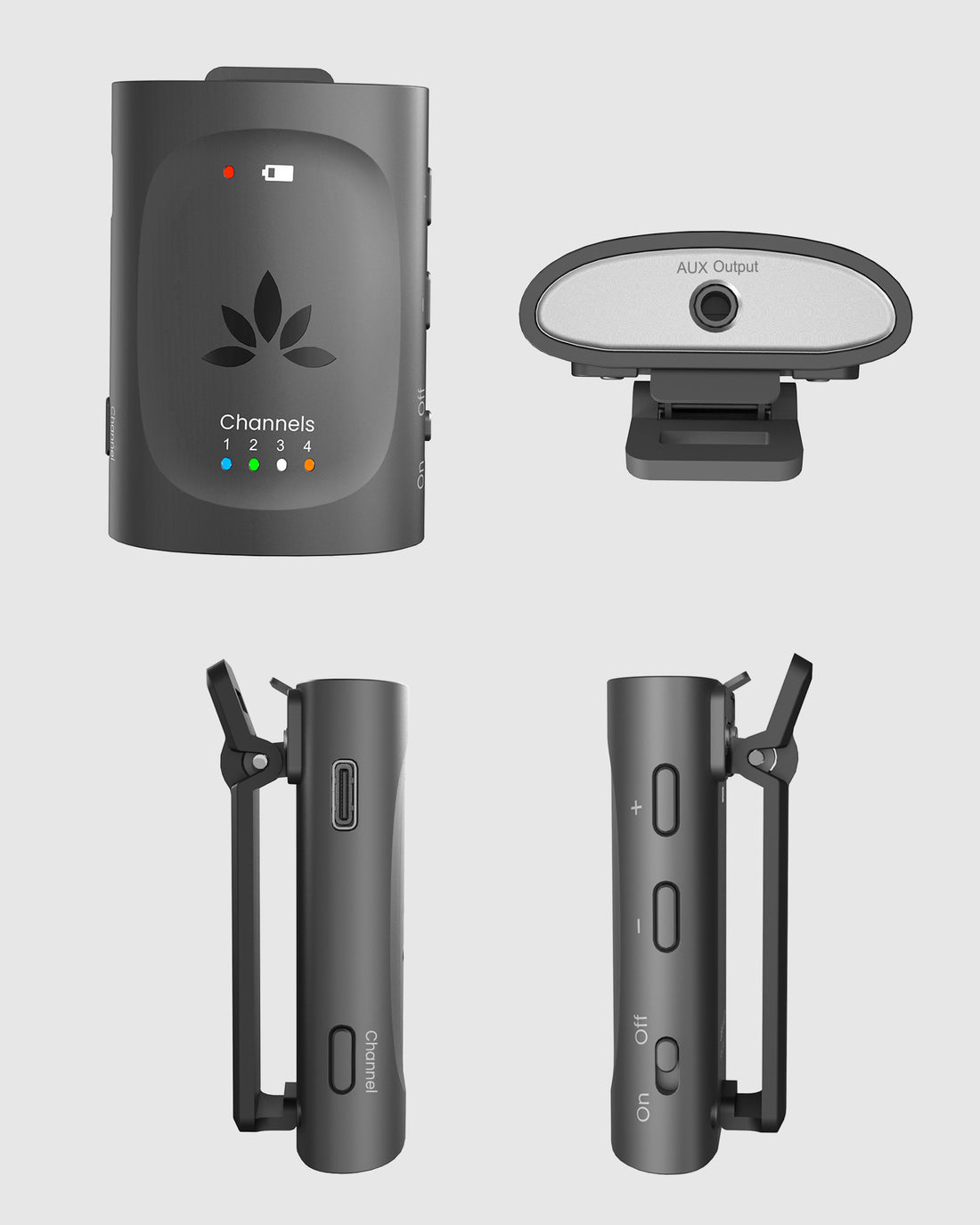

  • 10 x Audiplex receivers

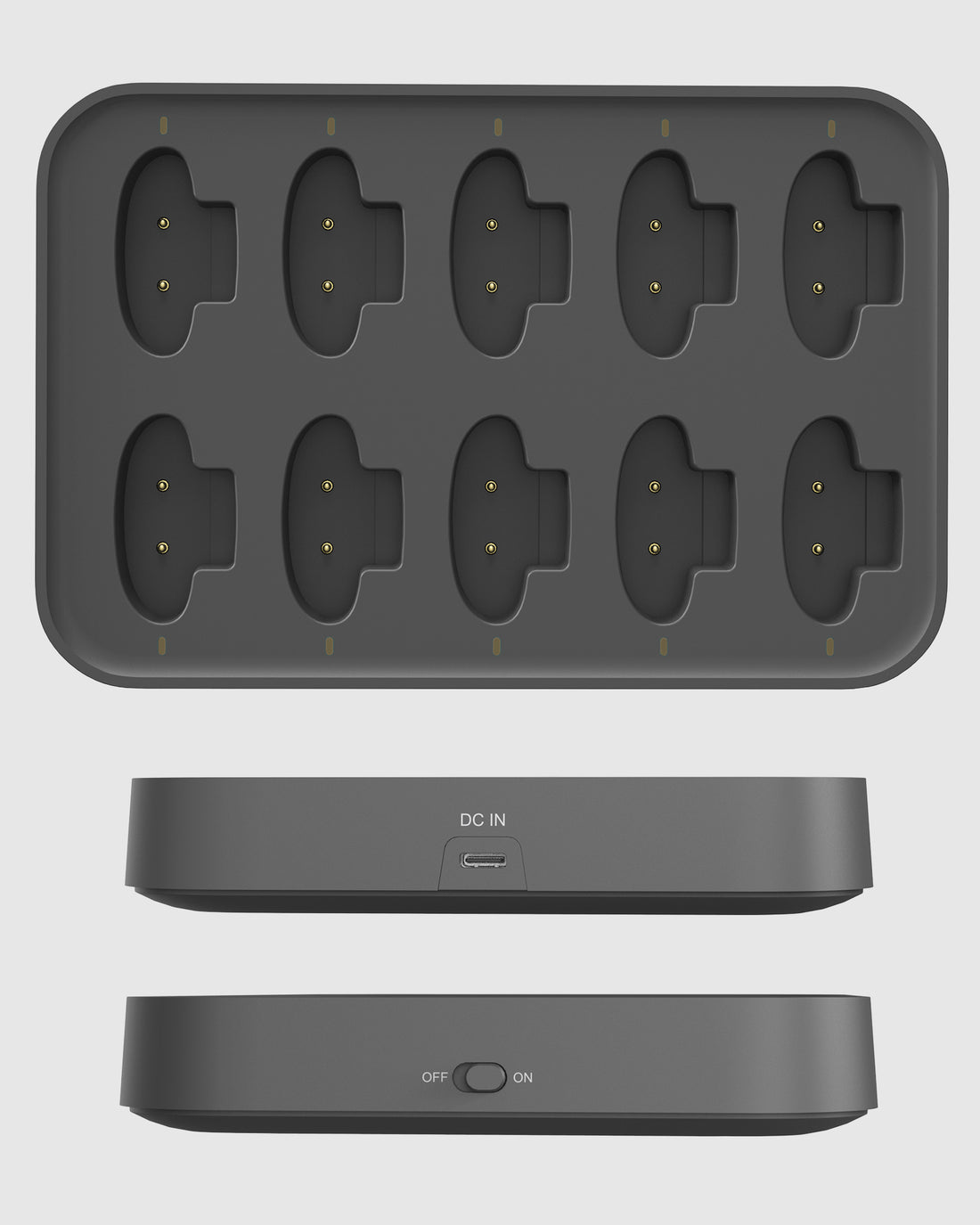

  • 1 x ten-slot charging base
  • 1 x charging-base power adapter
  • 1 x storage bag
  • 1 x optical audio cable
  • 1 x 3.5mm audio cable
  • 2 x USB-C data and power cables

05 · Compare

Compare alternatives

FeatureCurrent productAudiplex MXAuraPlex MXHarmony A3Quartet 2
Wireless technologyDedicated 2.4GHz RFAuracastAuracastDedicated 2.4GHz RF
Audio inputsBluetooth, optical, AUXBluetooth, optical, AUXBluetooth, optical, AUXBluetooth, optical, AUX
Published rangeUp to 100m / 328ftUp to 100m / 328ftUp to 100m / 328ftUp to 30m / 100ft
Typical latencyUnder 30msApprox. 60msApprox. 50-70msApprox. 30ms
Listener devicesDedicated Audiplex receiversAuracast receivers and compatible devicesPowered speakers through receiversIncluded wireless headphones
Best forManaged multi-channel low-latency listeningAccessibility-first Auracast listeningExisting powered-speaker distributionCompact low-latency group listening

06 · Common questions

Common questions

What is Audiplex MX designed for?

Audiplex MX is a dedicated low-latency group listening system for churches, classrooms, training, conferences and multilingual events.

What is included in the system?

The system includes one Audiplex transmitter, ten receivers, a ten-slot charging base, power adapter, storage bag, optical and 3.5mm audio cables, and USB-C data and power cables.

How many channels can listeners select?

The system supports up to four selectable channels when compatible transmitters are configured for separate audio programs.

What is the expected range?

The published range is up to 100m / 328ft line of sight. Walls, people and interference can reduce usable coverage.

Can I add more receivers?

Yes. Audiplex MX supports compatible add-on receivers, with published support for up to 100 receivers.

Does Audiplex MX connect directly to Auracast hearing aids?

No. Audiplex MX uses a dedicated 2.4GHz receiver system rather than Auracast. Compatible wired headphones, earbuds or neckloops connect to its receivers.
